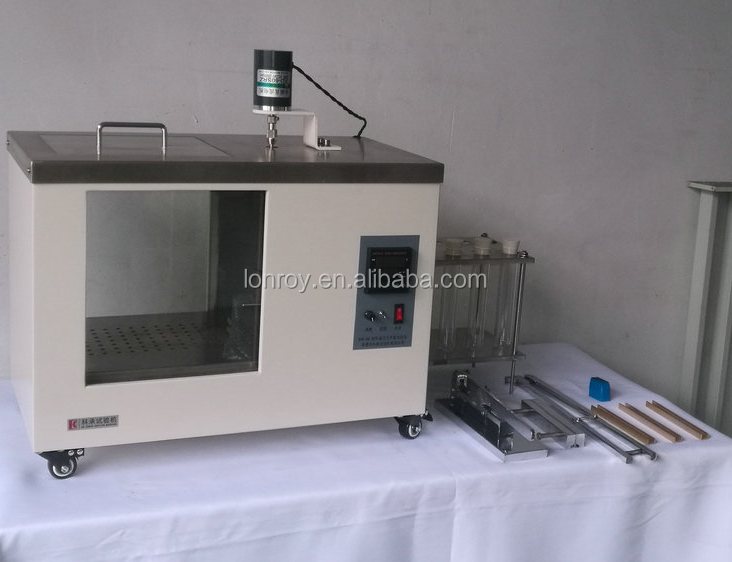

ASTM D1693 Plastics Environmental Stress Cracking Tester
Overview:
Nyk-06 environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene - based resins and plastics.
Ii. Applicable Standards:
GB/T1842, GB/T2951.41, ASTM D1693
ASTM D1693 Plastics Environmental Stress Cracking Tester
Instrument Features:
1. The shell of this product is made of high-quality cold-rolled plate with plastic-sprayed surface.
2. The inner tank, upper cover and test-tube stand are made of 304 stainless steel, which are resistant to corrosion and durable.
3. Sample retainer brass material, machined slotted (non-stainless steel plate bending).
4, PID special temperature control instrument table, accurate temperature control, stable performance, easy to operate.
ASTM D1693 Plastics Environmental Stress Cracking Tester
Technical Parameters:
| Adjustable temperature range | room temperature -100℃ |
| Temperature control accuracy | ±0.5℃ |
| Blade length | 19mm |
| Blade height | 3mm |
| Blade thickness | 0.24mm |
| Notch depth | 0.3-0.65mm |
| Sample specifications | length: 38±2.5mm, width: 13±0.8mm, height: 1.75-3.00mm |
| Specimen retainer width | 12±0.05mm, 11.75±0.05mm (optional) |
| Tank size | 420*305*375mm (length * width * height) |
| Overall dimension | 605*330*610mm (length * width * height) |
| thermal medium | pure water |
| Ambient temperature | 10-40℃ |
| Power supply | 220V 50Hz |
| Heating power | 3KW |
ASTM D1693 Plastics Environmental Stress Cracking Tester
Configuration List
| Serial Number | Name | Units | Quantity | Remark |
| 1 | Thermostatic Bath | PCS | 1 | |
| 2 | Test Tube Stand | PCS | 1 | 8 station, expandable |
| 3 | Nick Device | PCS | 1 | |
| 4 | Test Tube | PCS | 3 | |
| 5 | Cutting Tool For Processing Sample | PCS | 1 | 38* 13mm |
| 6 | Sample Retainer | PCS | 3 | 1. There are two options for the width of the inner slot: 12+ -- 0.05mm;11.75 + 0.05 mm 2. A maximum of 10 samples can be placed in each sample cage |
| 7 | Sample Bending Device | PCS | 1 | |
| 8 | Sample Transfer Tool | PCS | 1 | |
| 9 | Blade | PCS | 3 | |
| 10 | Specification | PCS | 1 | |
| 11 | Packing List | PCS | 1 | |
| 12 | Certificate | PCS | 1 | |
