Brand Name : lonroy
Place of Origin : Guangdong, China
Model Number : LR-300C
MOQ : 1
Temperature range : -40~600℃
Temperature resolution : 0.001℃
Temperature fluctuation : ±0.001℃
Temperature repeatability : ±0.01℃
Heating rate : 0.1 ~ 80℃/min
Constant temperature time : ≤24h
DSC range : 0 ~ ±600mW
DSC resolution : 0.01uW
DSC sensitivity : 0.001mW
Power supply : AC220V/50Hz or customized
Gas flow : 0-300ml/min
Gas pressure : 0.2mpa
Display type : 7 inch LCD touch screen
Data interface : USB
Cooling device : Semiconductor cooling device (optional liquid nitrogen refrigeration)

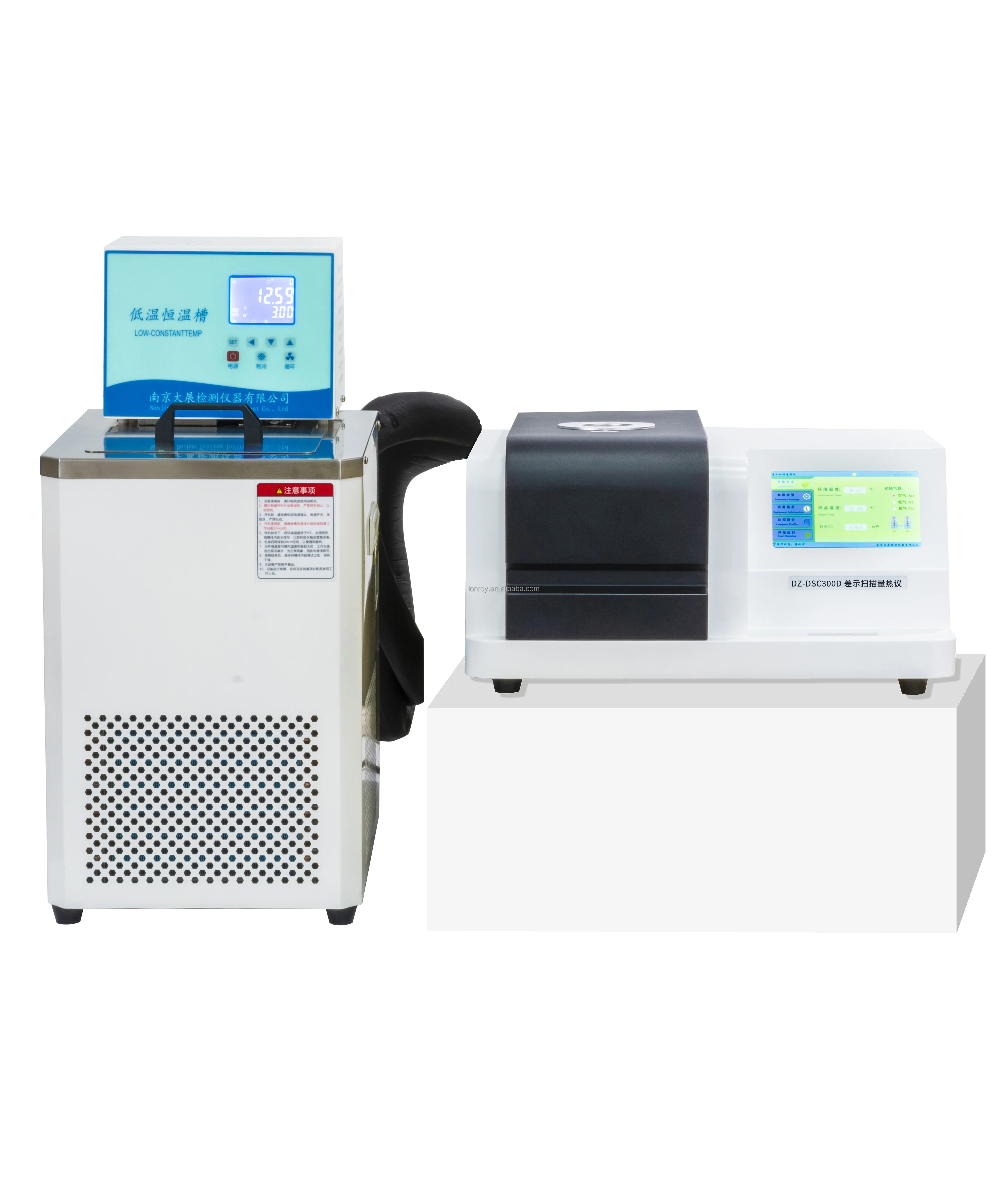

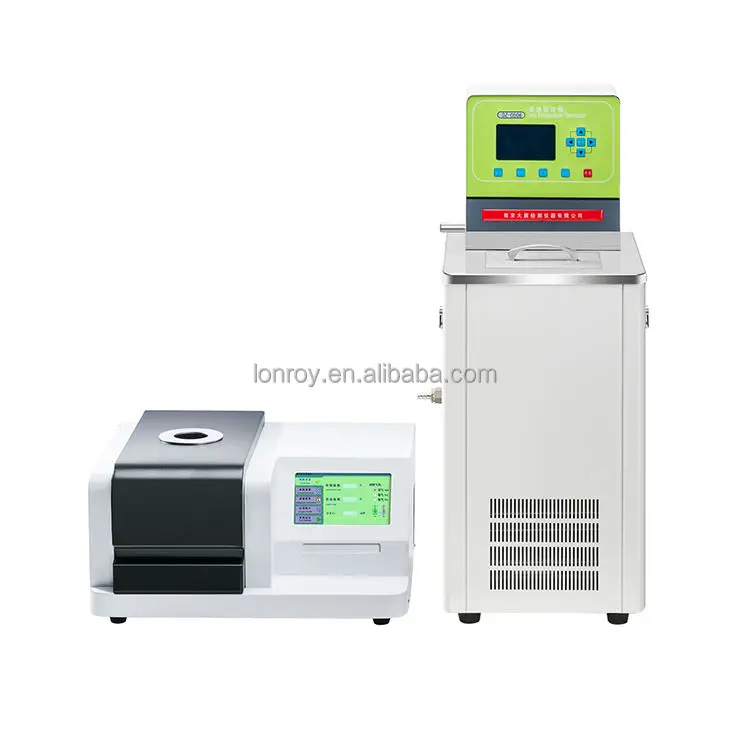

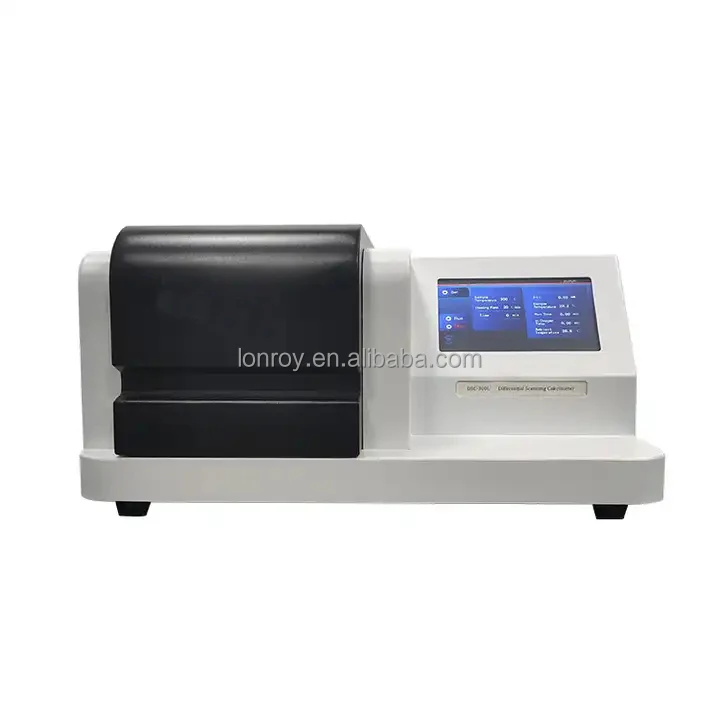

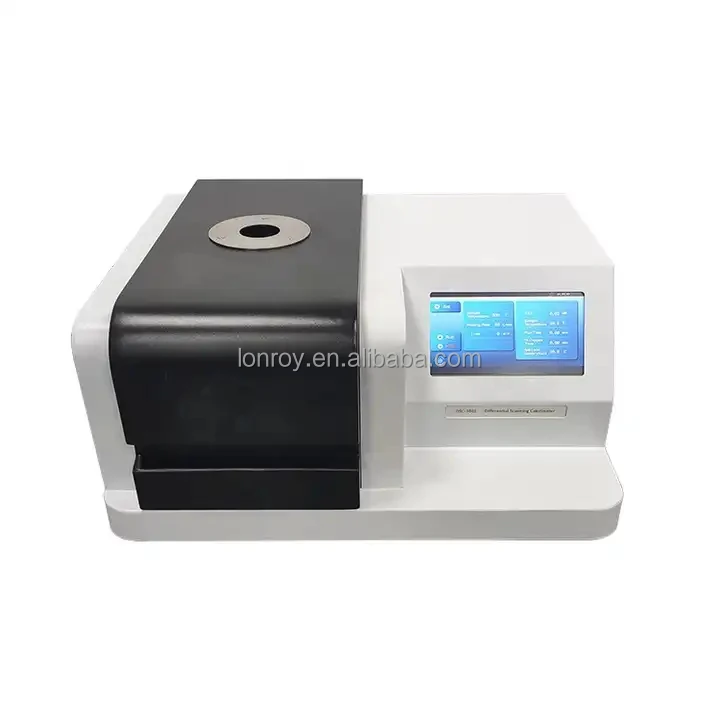

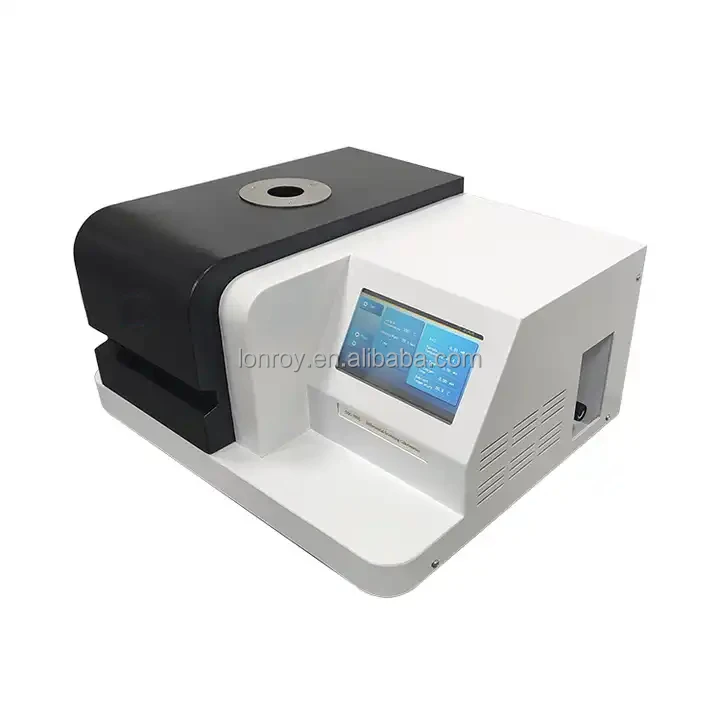

-40~600℃ Mechanical Cooling Scanning Calorimetry Tester DSC TGA STA DTA analyzer differential scanning calorimeter price
Product Introduction:
LR-300C is the company launched DSC series of products with the highest accuracy of one, the sensor is the use of imported material E-couple, high precision, high sensitivity, good repeatability, signal acquisition circuit shielding protection, strong anti-interference, baseline stability and repeatability is very high.
LR-300C differential scanning calorimeter, can be glass transition temperature, phase transition temperature, melting point, enthalpy value, curing temperature and product stability, oxidation induction period and other tests.It is qualified for the research of pipe, polymer, chemical, food, medical and other fields, and serves universities, enterprises, third-party measurement and quality inspection units, with a wide range of applications to meet the testing needs of various industries.
-40~600℃ Mechanical Cooling Scanning Calorimetry Tester DSC TGA STA DTA analyzer differential scanning calorimeter price
Technical parameters:
1. Temperature range: -40~600℃
2 temperature resolution: 0.001℃
3 temperature fluctuation :±0.001℃
4. Temperature repeatability :±0.01℃
5. Heating rate: 0.1 ~ 80℃/min
6. Constant temperature time: program setting ≤24h
7. Temperature control mode: heating, constant temperature, cooling (automatic program control)
8.DSC range: 0 ~ ±600mW
9.DSC resolution: 0.01uW
10.DSC sensitivity: 0.001mW
11. Power supply: AC220V/50Hz or customized
12. Atmosphere control gas: nitrogen, oxygen (program setting/automatic switch)
13. Gas flow: 0-300ml /min
14 gas pressure: 0.2mpa
15. Display mode: 24bit color, 7 inch LCD touch screen display
16. Data interface: standard USB interface
17. Parameter standard: equipped with standard material (indium, tin), users can adjust the temperature by themselves
18. The instrument has multiple groups of thermocouples, one group to measure sample temperature, one group to measure furnace body temperature, and one group to measure internal environment temperature
19 cooling device: semiconductor cooling device (optional liquid nitrogen refrigeration & LT;- 150 ~ 550 ℃ & gt;)
-40~600℃ Mechanical Cooling Scanning Calorimetry Tester DSC TGA STA DTA analyzer differential scanning calorimeter price
Technical features:
1. Industrial grade 7 inch touch screen, display rich information 2. New furnace body structure, better baseline, higher accuracy.Heating adopts indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode. 3.USB communication interface, strong commonality, reliable communication without interruption, support self-recovery connection function. 4. Automatic switching of two air flow, fast switching speed, short stability time.At the same time, a protective gas input is added. 5. Software is simple and easy to operate. 6. Ultra-high sensitivity, accuracy, 0.001 MW, 0.001℃ 7. Exquisite technical indicators, superior performance, cost-effective, widely used |
![]() |
