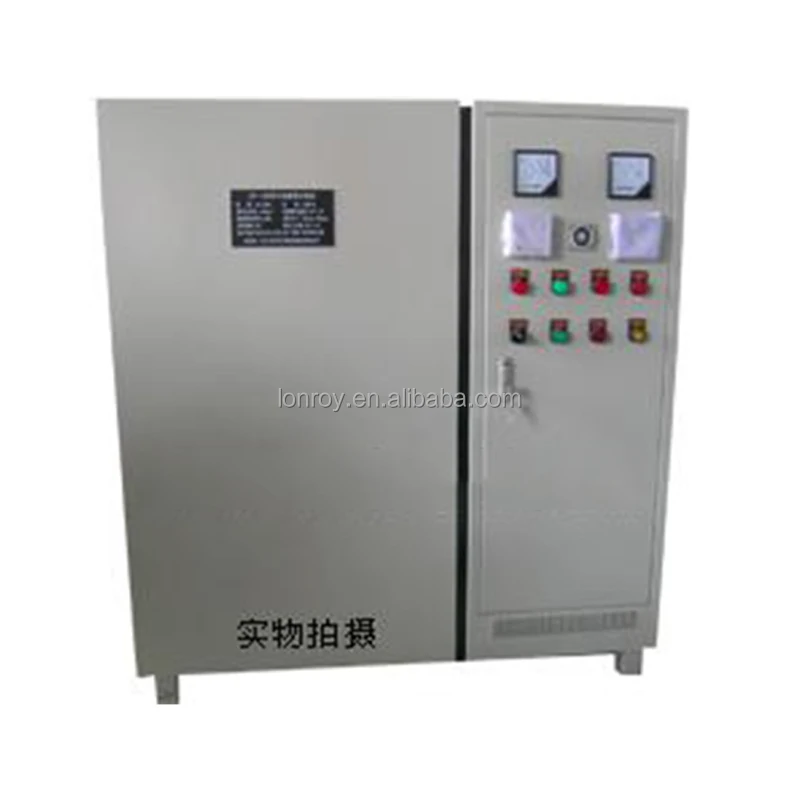

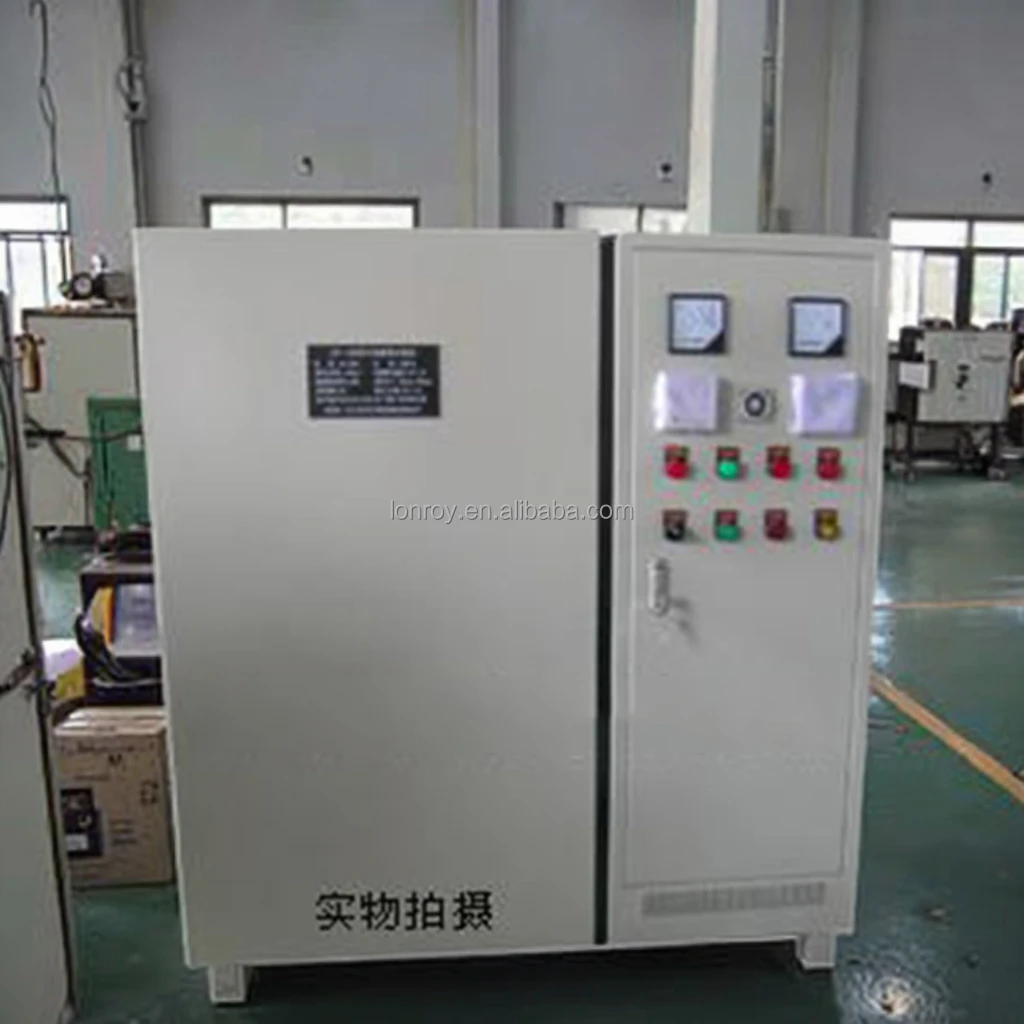

Ultraviolet Irradiation Detector Insulated Glass UV Radiation Tester Glass Ultraviolet Radiation Resistance Testing Machine

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 1.8KW

Voltage : 220 V

Protection Class : Ip56

Test chamber temperature : 50℃ ± 3℃

Test light source : UV lamp MLU type 300W

Time setting range : 0 - 300h

Cooling plate material : Copper

Light output power : > 40W / m²

Sample distance : 300mm

Inlet water temperature : 16℃ ± 2℃

Outlet water temperature : 16℃ ± 2℃

Working temperature : Not lower than 20℃

Equipment composition : UV irradiation detector and constant temperature circulating water device

Water supply requirement : Not required

Power supply : AC: 220V / 1.8KW

Contact Now

Ultraviolet Irradiation Detector Insulated Glass UV Radiation Tester Glass Ultraviolet Radiation Resistance Testing Machine

Product Description

Product Introduction



The ultraviolet irradiation detector is designed and manufactured in accordance with the technical requirements of the national standard GB/T11944-2012 "Insulated Glass". It is a testing equipment used to examine the ultraviolet radiation resistance of insulating glass.



Working principle

Ultraviolet lamps are installed in a sealed test chamber. The glass sample is placed in an appropriate position within the chamber and exposed to ultraviolet radiation. A cooling plate is placed closely against the other side of the sample, and the cooling plate is cooled by tap water. During the test, it is checked whether fog, oil or other contaminants appear on the cooling plate after the insulating glass is exposed to ultraviolet radiation, in order to determine the insulating glass's resistance to ultraviolet radiation.




Ultraviolet Irradiation Detector Insulated Glass UV Radiation Tester Glass Ultraviolet Radiation Resistance Testing Machine

Technical Specification

Temperature inside the test chamber

50℃ ± 3℃

Power supply / power

AC: 220V / 1.8KW

Cooling plate material

Copper

Light output power

> 40W / m²

Distance between sample center and light source

300mm

Test light source

UV lamp MLU type 300W

Inlet and outlet water temperature of the cooling plate

16℃ ± 2℃

Time setting range

0 - 300h

Working environment temperature

Not lower than 20℃

Equipment composition

Consists of a UV irradiation detector and a constant temperature circulating water device

Note

This equipment does not require an inlet and outlet water supply
