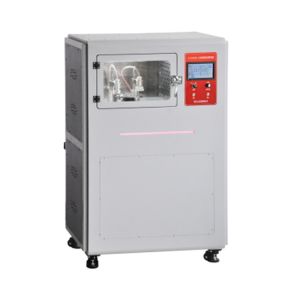

Fabric Inductive Electrostatic Tester Textile Induction Static Electricity Test Machine
Introduction
The static properties of various textile raw materials and finished products (including fibers, yarns, fabrics, carpets, decorative fabrics) can be measured. It can also be used to measure the static properties of other sheet-like materials such as paper, rubber, plastics, and composite panels.
Compliant with standards
The testing standards such as GB/T 12703.1-2021.
Product Features
1. Large-screen color touch screen for operation display, with both Chinese and English interfaces, and menu-based operation;
2. The specially designed high-voltage generation circuit ensures continuous and linear adjustment within the range of -10kV to 0. The high-voltage voltage value is displayed digitally, making the high-voltage adjustment intuitive and convenient.
3. The high-voltage generation circuit adopts a fully enclosed module structure. The electronic circuit is capable of achieving high-voltage shutdown and startup, overcoming the drawback of domestic similar products where the high-voltage generation circuit is prone to causing sparking at the contacts. It is safe and reliable to use.
4. The attenuation period of the static voltage can be selected arbitrarily: from 1% to 99%.
5. The test can be conducted using either the timing method or the pressure-stabilization method. The instrument directly displays the instantaneous peak value, half-life value (or residual static voltage value) and attenuation time during the high-voltage discharge through a digital display. It automatically shuts off the high voltage and the motor, making the operation very convenient.
6. Equipped with a dehumidification duct, the static electricity half-life test can be conducted in the laboratory environment.
7. Equipped with a humidity sensor, it is convenient to observe the stable state of humidity.
Technical Specification
|
Static voltage value measurement range
|
-10kV to 0
|
|
Half-life time range
|
0 to 9999.99 seconds, with an error of ±0.1 second
|
|
Sample disc rotation speed
|
1400 revolutions per minute
|
|
Discharge time
|
Adjustable from 0 to 999.9 seconds. (Standard requirement: 30 seconds ± 0.1 second)
|
|
Discharge distance (needle-shaped electrode to sample)
|
20mm
|
|
Measuring distance (test probe to sample)
|
15mm
|
|
Sample size
|
45mm × 45mm
|
|
Humidity sensor testing range
|
0%RH to 100%RH, accuracy: ±3%
|
|
Power supply
|
220V, 50HZ, 400W
|
|
Dimensions
|
900 * 600 * 1350 mm (Length × Width × Height)
|
|
Weight
|
Approximately 110 kilograms
|
